Modèl Pa gen.: MT220WPM-N10
| Panel Brand | BOE | Panel Model | MT220WPM-N10 |
| Panel Size | 22.0" | Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1680(RGB)×1050, WSXGA+, 90PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 473.76(W)×296.1(H) mm | Bezel Opening | 477.7(W)×300.1(H) mm |
| Outline Size | 493.7(W)×320.1(H) ×10.7(D) mm | Surface | Antiglare (Haze 25%), Hard coating(3H) |
| Brightness | 250nit or customized | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Display Colors | 16.7M 72% NTSC | Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Frequency | 60Hz | Lamp Type | 3 strings WLED , 40K hours , Without Driver |
| Weight | 1.83Kgs (Typ.) | Touch Screen | Without |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector | ||
| Input Voltage | 5.0V (Typ.) | ||
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C | ||

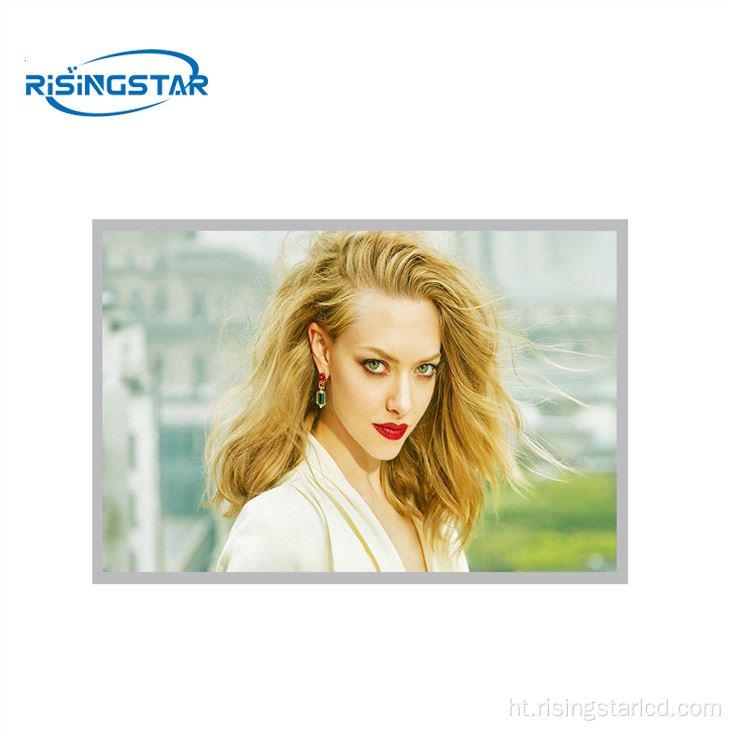

MT220WPM-N10, 22-pous ekran modil LCD, ekspozisyon rezolisyon se 1680*1050, rapò aspè: 16:10 (lajè: wotè)
Zòn ekspozisyon: 473.76 (W) × 296.1 (h) mm
Zòn vizib: 477.7 (W) × 300.1 (h) mm
Dimansyon: 493.7 (W) × 320.1 (h) × 10.7 (d) mm
Sous limyè bò-kalite, lavi a nan sous la limyè se 40k èdtan, ak pousantaj la rafrechi vètikal se 60Hz.
Tanperati opere: 0 ~ 50 ° C
Tanperati depo: -25 ~ 60 ° C
Aplikasyon: Apwopriye pou monitè òdinatè.
Tags cho: MT220WPM-N10 22.0 "1000NIT LCD TV Panèl, Lachin, faktori, bon mache, pri, Customized, sitasyon ekspozisyon, semi deyò ekran
