Modèl Pa gen.: LA123WF1-SR01

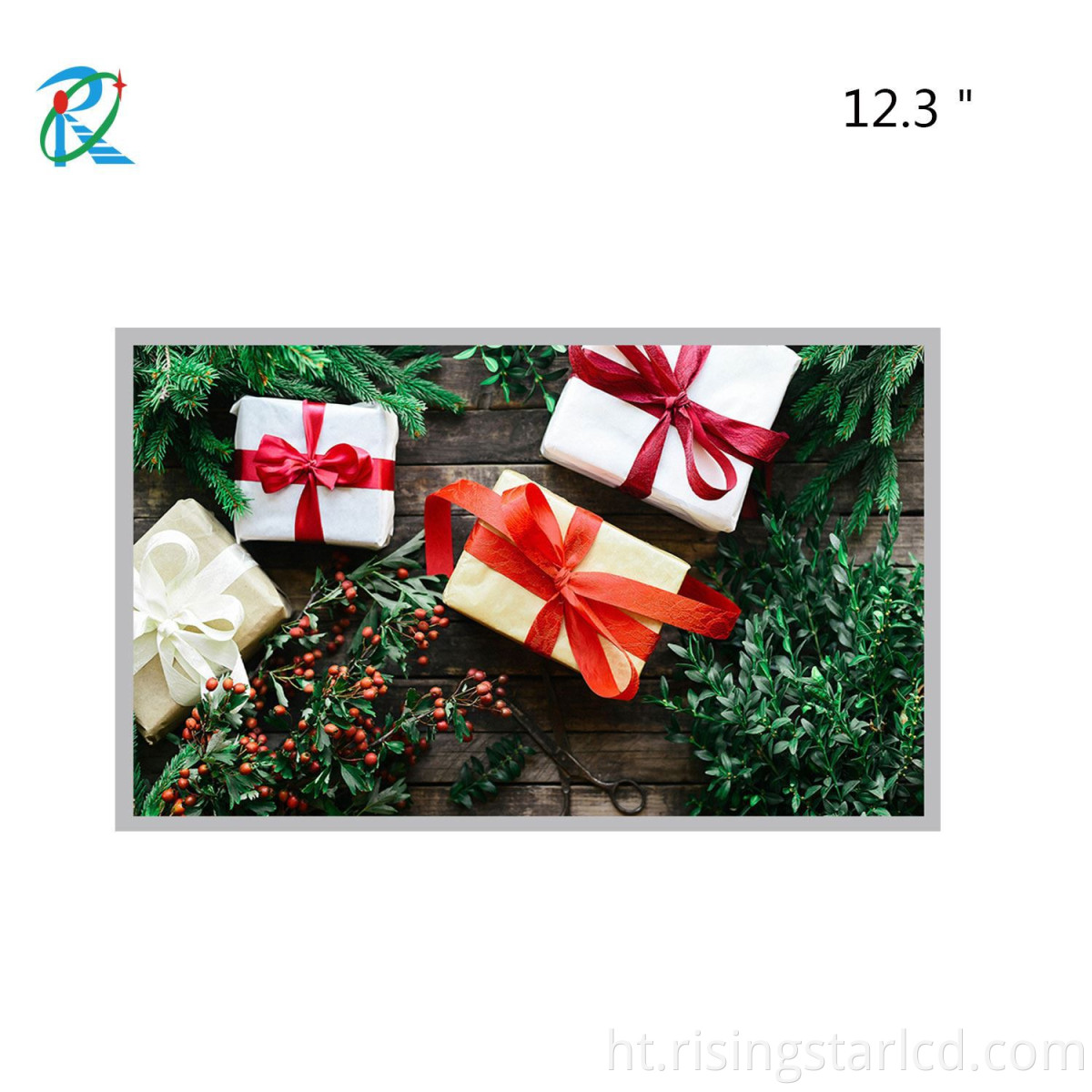

12.3 pous LG Display LA123WF1-SR01 HIGH BLIGHTNESS LCD Panel Solèy la Vizib.
Modèl menm mak la ak gwosè: LA123WF1-SR01, LA123WF1-SR03, LA123WF4-SR03, LA123WF5-SL01, LA123WF4-SR08, LA123WF4-SL02, 3-SR02, LA123WF1- SR02, LA123WF4-SR09.
Ou ka chwazi modèl la dwa dapre bezwen ou yo.
| brand | LG Display (LG Display) | Model name | LA123WF1-SR01 |
| size | 12.3 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution | 1920(RGB)×720 167PPI | Pixel configuration | RGB vertical bar |
| Display size | 292.032×109.512(H×V)mm | Surface treatment | Hard coating |
| Brightness(cd/m²) | 600 cd/m² (Min.) or customized | contrast | 800:1 (Typ.) [transmission] |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Appearance of size | 310×128×11.05mm(H×V×D) |
| Signal system | 110 pins RSDS (2 Channel) , FPC |
|
|
| Maximum rated | Storage temperature: -40 ~ 95 °C Working temperature: -40 ~ 85 °C |
|
|
Tags cho: 12.3 "LG LA123WF1-SR01 TFT LCD Modil, Lachin, faktori, bon mache, pri, Customized, sitasyon , ekran mens pou televizyon, 43 pous deyò ekran LCD , panèl LCD, modil LCD, ekspozisyon segondè klète.
10.3 "LG LA103DV1-SL01 TFT LCD Modil
15.6 "LG LP156WFC-SPU1 TFT LCD Modil
