Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Min. Lòd:1 Piece/Pieces
Size: 10.1 inch
Brightness: 1000 nits
Contrast Ratio: 1000:1
Resolution: 1280*800
Operating Temperature: -10 - 50°C
Ti gwosè entegre ekspozisyon deyò, 10.1 pous TFT 1000 NITS LCD ki monitè kè bebe. Ka kontni ki parèt sou ekran an dwe wè klè nan yon anviwònman ki byen limen, yo ka itilize ak tout kalite chaje pil, pwòp tèt ou-sèvis machin lavant, kontwar ak lòt tèminal sèvè.
Si ou gen lòt bezwen, tanpri kontakte nou, nou pral Customize solisyon ki pi apwopriye likid ekspozisyon kristal dapre bezwen ou yo.

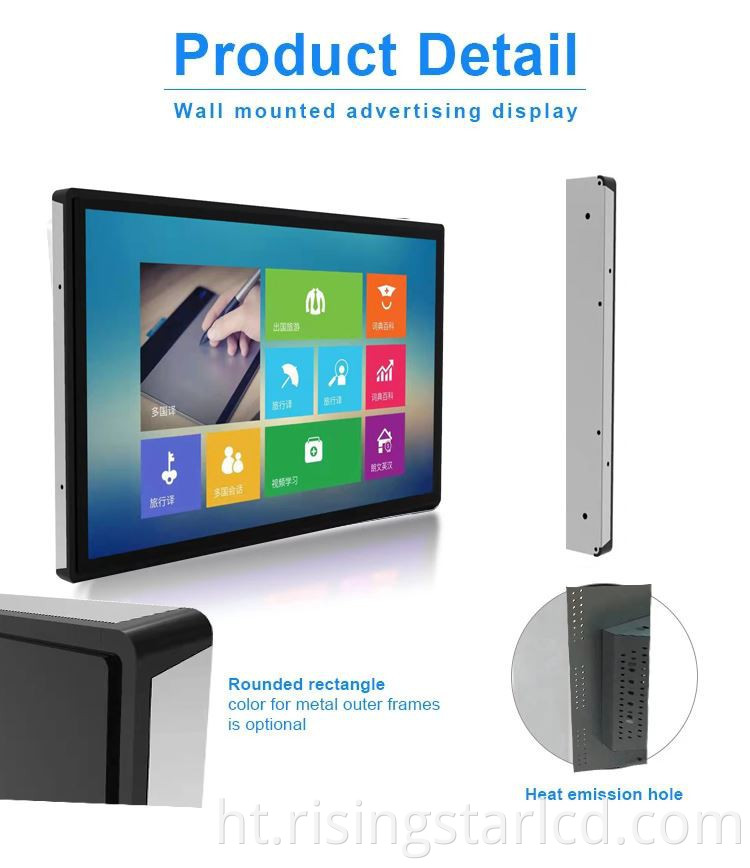

Embedded Deyò montre karakteristik pwodwi
10.1 "TFT LCD panèl
1280*800 Rezolisyon
Deyò itilize, klète a soti nan 500nits a 1500 nits si ou vle
Kapasitif manyen panèl, ki kouvri ak 2mm apeze vè solid ak serye pou prèv vandalis
VGA HDMI DVI koòdone USB
Segondè pèfòmans Mainboard, 7/24 operasyon kontinyèl
Sipò pou 12-24V lajè vòltaj
Ultra-mens devan Montour 3mm, ideyal pou entegre aliye
Devan panèl IP55 ki enpèmeyab prevansyon pousyè
Operasyon tanperati lajè: -10 - 50 ° C
|
Product specification |
|
|
LCD panel |
|
|
Panel size |
10.1" |
|
Resolution |
1280*800 or 1024*600 |
|
Support Color |
16.7M colors |
|
Brightness (cd/m²) |
1000 nits (can be customized) |
|
Contrast ratio |
1000:1 |
|
View angle |
80°/80°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
Capacitive Touch (10 points ) |
|
Surface Hardness |
7H |
|
Luminousness |
90% |
|
Touch Interface |
USB (RS232 optional) |
|
Touch response time |
2ms |
|
Working Life |
>50 million times |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
|
Support languages |
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
|
Support OS |
Windows ,HDMI, Android, ect. |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V, 50-60Hz |
|
Working voltage |
DC 12-24V |
|
Power consumption |
≤35W |
|
Enclosure |
|
|
Material |
Aluminum Alloy |
|
Color |
Black, Silver or customized |
|
VESA mounting |
75x75mm/100x100mm |
|
IP grade |
Front panel IP55 waterproof |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 50°C, storage: -20 to 80°C |
|
Relative humidity |
operating: -5% to 95%, storage: -5% to 95% |
|
Packing Details |
|
|
Gross weight |
about 4kg |
|
Accessories |
Power adapter, VGA cable, USB touch cable, embedded screws |
|
Other |
|
|
Mounting |
embedded mounting screws |
|
wall mounting brackets (optional) |
|
|
desk stand holder (optional) |
|
|
Warranty |
1 year warranty |
|
Certificates |
CE, 3C, RoHS |
